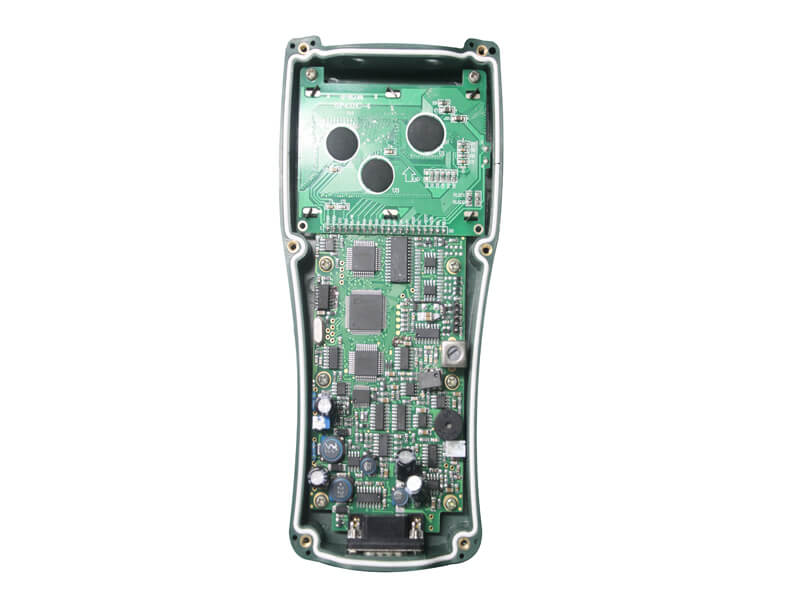

  • PCB

Ultrasonic Flow Meter

  • Linearity:0.5%
  • Repeatability:0.2%
  • Accuracy:±1% of reading at rates>0.2 mps
  • Velocity:±32 m/s
  • Size:DN15-DN6000
Share With:
  • Overview
  • Technical Data
  • Inquiry
 Principle
Ultrasonic water meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non- fouling operation and easy installation.

Transit time ultrasonic flow meter send and receive ultrasonic waves between transducers in both the upstream and downstream directions in the pipe. At no flow conditions, it takes the same time to travel upstream and downstream between the transducers. Under flowing conditions, the upstream wave will travel slower and take more time than the (faster) downstream wave. When the fluid moves faster, the difference between the upstream and downstream times increases. The transmitter processes upstream and downstream times to determine the flow rate.

Features
• 0.5% of linearity
• 0.2% of repeatability
• 4 flow totalizers
• Patent balanced lower-voltage multi-pulse ultrasonic igniting
• built-in date totalizers
• built-in data-logger
• Work properly near transverters
• 0.5 second totalizing period
• 100 Pico-second resolution of time measurement


ultrasonic flow meters
handheld ultrasonic flow meter parts
measuring ways

V-method Installation

V-method installation is the moswidely used mode for daily measurement with pipe inner diameters ranging from 15 millimeter to 200 millimeter. It is also called reflective mode or method.

v type



Z-method Installation

Z-method is commonly used when the pipe diameter is between 300 millimeters and 500 millimeters.

z type

W-method Installation

W-method is usually used on plastic pipes with a diameter from 15 millimeters to 100 millimeters

w type




certificate






 Ultrasonic water meter Specification:



Linearity 0.5%
Repeatability 0.2%
Accuracy ±1% of reading at rates>0.2mps
Response 0-999 seconds
Velocity ±32m/s
Pipe Size 15mm-6000mm
Rate Units Meter,Feet,Cubic Meter,Liter,Cubic Feet,USA Gallon,UK Gallon,
Oil Barrel,USA Liquid Barrel, UK Liquid Barrel;
Totalizer 7-digit totalizers for net accumulation and positive and negative accumulations
Liquid Types all liquids
Security Locks of Set values, you have to unlock while changing data;
Display 4x8 Chinese or 4x16 English letters
Communication Interface RS-232C,baud-rate :from 75 to 57600.Protocol made by the
manufacturer and compatible with that of the FUJI ultrasonic flow meter.
Transducers Model M1 for standard,other 3 models for optional
Transducer Cord Standard 2x5 meters,optional 2x10 meters
Power Supply 3AAA Ni-Hbuilt-inbatteries.When fully rech arged it will lastover 10 hours of operation.
100V-240VAC for the charger
Data Logger Built-in data logger can store over 2000 lines of data
Manual 7-digit press-key-to-gototalizer for calibration
Housing ABS





Inquiry >>
