How to make correct installation of Turbine flow meter

2018-09-12
1.Turbine Flow meter may be installed horizontally or vertically. In the latter case the fluid shall be flowing from downward and fulfill the pipe to avoid bubbles;

2.When fluid contains impurities, filter shall be additionally installed. The number of filter screen meshes is determined in accordance  with the flow and impurity, normally 20 to 60 meshes.

3.The internal wall of pipe sections shall be smooth and clean, free of defects such as indent, fouling and peeling. The pipe axis of the sensor shall be alignedwith that of the neighboring pipe
and the washers used for connection and sealing may not be embedded into depth of the pipe cavity; the sensors shall be kept away from foreign electric field and magnetic field, effective shielding measures shall be taken in case of necessity to avoid external interference.

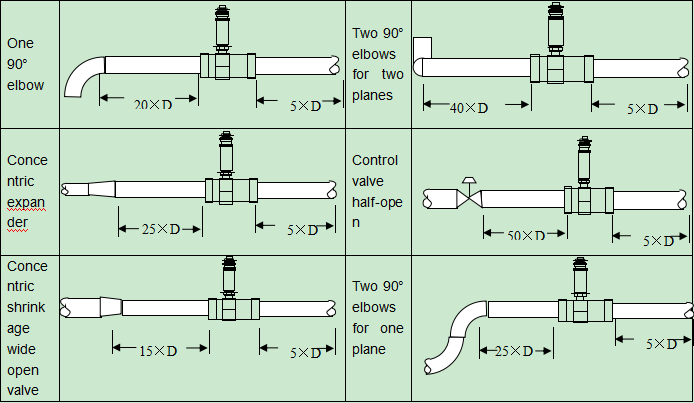

Detailed information please check below:
